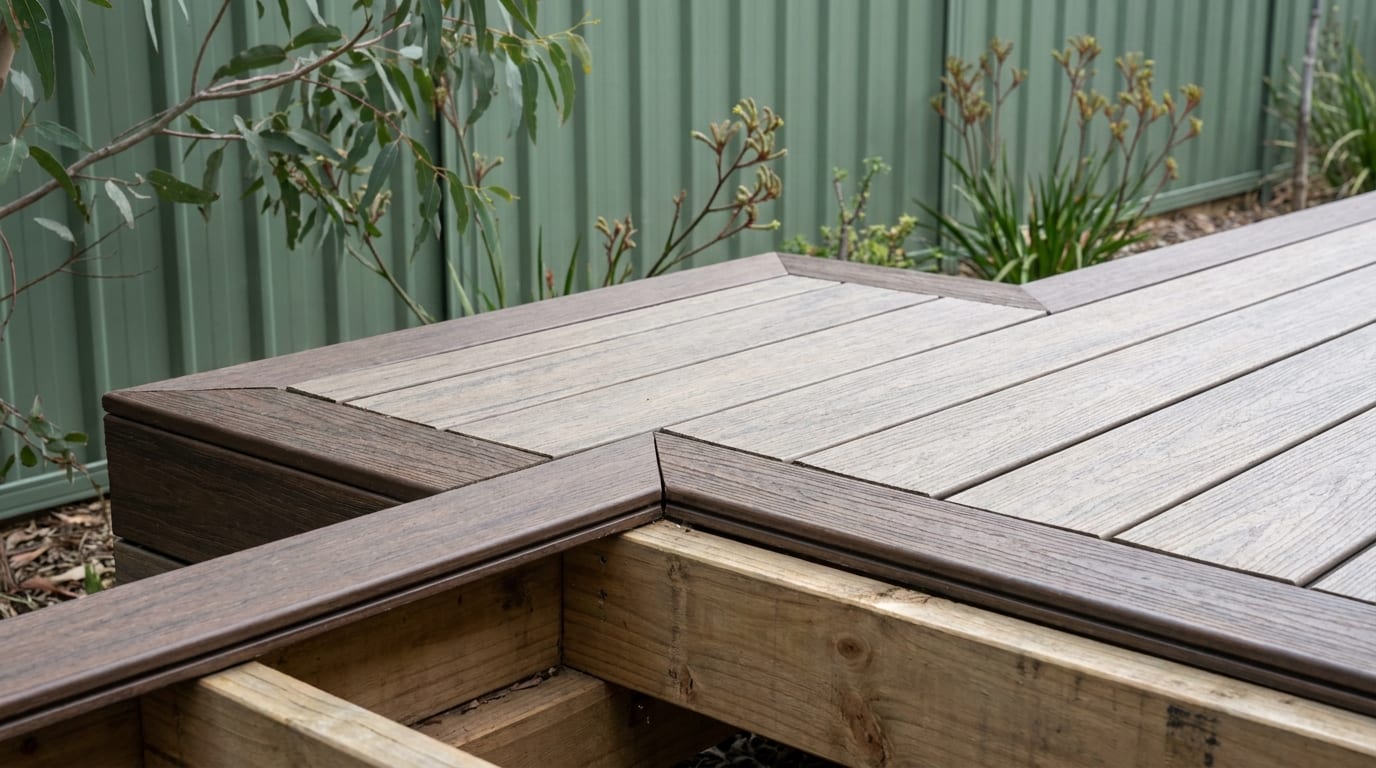

Picture-frame borders on a composite deck: how to plan and frame them

A picture-frame border is one or two boards run around the outside of the deck so the field boards finish against them instead of showing their cut ends at the edge. On a composite deck it hides the ends, which on a hollow board means hiding the holes. One maker strongly recommends a border or breaker boards on its decks¹. Where a border runs parallel to the joists, an ordinary frame has nothing under it. The frame has to be built for the border. A border added as an afterthought, on a frame built only for straight boards, has nothing to fix into where it needs it most.

How do you install a composite decking border?

The order is frame first, border second, field boards last, then fascia if you want one. The border boards go down before the field because the field boards are cut to meet them with a gap, and you cannot set that gap against a board that is not there yet. One manual has you mitre and fix the first border board before the field goes down¹. The closing border board is mitred and fitted last, and the field boards' clips slide into the border's edge. One owner who posted a low-profile build in July 2026 worked the same way, laying a border of standard boards around the edge in place of fascia boards and then filling the field inside it⁸. The rest of the order of work is in how to install composite decking.

In practice that means:

1. Build the support for the border into the frame. A border board running parallel to the joists sits on nothing unless there is timber under it. One manual's framing diagrams put noggings between the joists under breaker and border boards, with the clips fixed down into them¹, and another face-fixes its breaker boards to blocking. The field boards that finish against the border need their own support at their ends as well.
2. Decide the gap to the wall and the overhang at the open edge before cutting anything. The border board is the one that overhangs the frame, and the guides cap that overhang. The maximum is 50 mm in one manual and in the resin-board guide¹, and another maker gives a figure for each board size, from 45 mm to 70 mm, with none allowed on its fire-rated board⁶. If a fascia is going on, leave enough overhang to cover its top edge.
3. Mitre the corners. One guide recommends cutting both halves of a mitre from the same board, from its centre, so the grain and the size match⁵. Leave the mitre gap the guide gives.
4. Fix the border. Its outside edge has no neighbour for a clip to grip, so it takes the edge fixing the guide names, such as an edge clip, a bracket or face screws. Where screws are used, pre-drill and keep them clear of the ends.
5. Lay the field boards up to the border, cutting the ends square and keeping the same gap to the border as between the boards, then fit the closing border boards.

Why borders need extra joists and blocking

Composite boards are fixed at every joist they cross, and a border board parallel to the joists crosses none of them. Without blocking it is held only at its ends and wherever a clip happens to reach. It flexes underfoot, and the field-board ends next to it have nothing to fix into either. Each board end needs its own support, so where a run of field boards finishes against a border, every one of those ends needs timber under it. On a straight lay that is a joist or a line of blocking at the ends of the field. On a diagonal lay I'd expect a short nogging under each board end, which is a lot of extra framing.

Breaker boards work the same way. One maker's FAQ says a breaker board needs a ladder joist under it, planned in when the frame is built, and that adding one later is the more expensive route⁴.

The border also changes the fixing count. A clip grips two boards, one each side. Along a border the field boards' clips slide into the border's edge, but the border's own outside edge has no neighbour and needs its own fixing. Count one row of edge fixings along each open edge when you order.

Mitres that open in the cold

A mitred corner is two cut ends meeting on the diagonal, and a composite board moves along its length with temperature. As the two border boards shrink on a cold morning, the mitre opens. As they grow on a hot afternoon, it closes. You cannot stop that, so you plan for it.

One manual has you reduce the normal end gap at a mitre by 2 mm to make a gap less likely to open¹. The same manual offers a herringbone corner as an alternative that copes better with the movement. The resin-board guide takes another route and glues every mitred corner, then coats the cut faces with a touch-up coating⁵. On a wood-plastic composite I wouldn't glue the mitre unless the guide says to, because one maker says no composite should be glued, given the way it expands and contracts⁴.

A butt-jointed corner, where one border board runs through and the other stops against it, is plainer, but it only opens on one face and it is easier to keep tight. I'd use it where the corner will be under furniture or against a wall.

Hollow boards, end caps and cut ends

A hollow board shows its chambers at every cut end. One maker's page notes the holes in hollow board ends and says finishing strips are sold to cover them⁷. A border is the neater answer, because it hides every field-board end behind a solid edge and leaves only the border's own ends to deal with. My guide to hollow vs solid composite decking covers end caps and the other trade-offs.

Near a pool or spa, seal the cut ends too. One manual says you must, with a clear solvent-based sealer¹, and another recommends it for any area exposed to constant moisture². The poolside detail is in composite decking around pools.

Stair treads are the other open edge. One guide allows only solid boards on treads and caps the tread overhang at 15 mm², and my guide to composite decking stairs covers the nosings.

Fascia boards and the border

A fascia is the vertical board that covers the frame below the deck edge. It is not the same thing as a border, and plenty of decks have one without the other. One guide is firm that the fascia goes on a rim joist, never straight onto the joists or the decking, through holes pre-drilled slightly oversized or routed so it can move². Fix it at the maker's spacing, which is 300 mm in two guides, 400 mm in another and 450 mm in a fourth²³¹. Keep the screws well in from the ends.

Where the border overhangs the fascia, keep the overhang inside the guide's maximum. I'd also look at the fascia boards as closely as the deck surface before you accept the job, because nobody walks on them. A NewTechWood owner wrote on ProductReview in November 2025 that fibres were showing on all the boards nearly a year after installation⁹. The maker had told them it was normal and would go with wear, and the owner asked how fascia boards were meant to get that wear from foot traffic.

Contrasting colours

A darker border around a lighter field reads as a frame. Before you commit, check how hot the darker colour gets in your sun, because the border is where bare feet step on and off the deck. My guide to whether composite decking gets hot covers colour and heat.

Check batches too. One maker designs its boards to vary in colour and tone from board to board and batch to batch¹, and one owner who replaced a board on a five-year-old deck found the new board a much lighter shade than the old ones¹⁰. Order the border and field boards from the same production run and keep a spare of each, because a replacement border board from a later batch is the one you will see.

Before you order

• Draw the border on the plan first, then count the noggings or blocking along every edge where the border runs parallel to the joists, plus the support the field-board ends need where they meet it.
• Add a row of edge fixings for each open edge, and end caps or finishing strips if any hollow ends stay exposed.
• Decide mitre, butt or herringbone corners now, and whether the guide for your boards wants the mitre glued or left with a gap.
• Keep the overhang inside the guide's maximum and leave room for the fascia under it.
• The joist layout for all of this is in joist spacing for composite decking, the end gaps are in expansion gaps in composite decking, and the deck designer will draw the border and count the boards. It draws a concept plan, so take it to your builder before you buy framing.
